Compare Models
New and improved! QuickJack TL models now lift an additional 3-inches to provide you with even more room to perform your automotive repair tasks. Every QuickJack model has its time and place in your home garage, at the track or in the shop. All share similar characteristics: they roll breezily in and out of storage, raise vehicles up to 24 inches off the ground, and have built-in automatic mechanical safety locks. We'll run through a brief comparison of the models we offer, so you can get a bird's-eye view of our product offerings.
Standard-Length Models
3500SLX
The ultimate track lift
This is the portable car lift that started them all. Originally conceived as a way for track-goers to quickly raise their vehicles to swap in and out of slicks, perform wheel service or conduct other repairs, it has since become so much more. This QuickJack model is smaller and lighter than the others, so in that way, it's extremely easy to roll longer distances around the track. The shortened frames and 3,500-lb. capacity mean it won't reach the OEM jack points of some standard consumer vehicles, but for many smaller compacts and race cars, it's just perfect. For instance, even though a Mustang usually weighs 3,500 lbs., its wheelbase will be too long for the 3500SLX to safely lift it. A Miata, on the other hand, is just the kind of car this jack is made to lift.
More Details Sales Flyer
| Lifting capacity | 3,500 lbs. |
|---|---|
| Lowered height | 3" |
| Max. height | 21" |

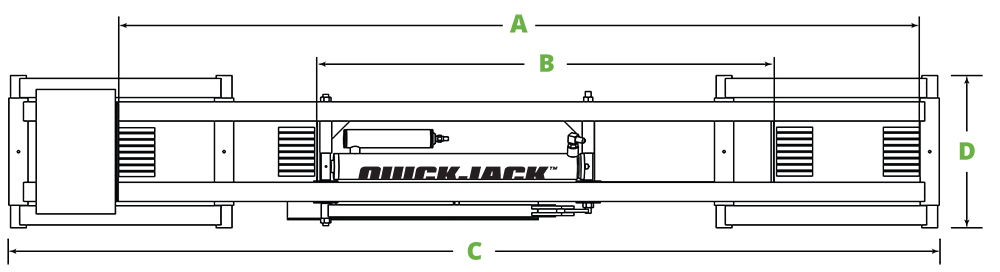

| A - Lift point spread (Max) | 50.5" |
| B - Lift point spread (Min) | 27" |
| C - Frame length | 62.5" |
| D - Frame width | 10.5" |
| Frame weight | 60 lbs. |

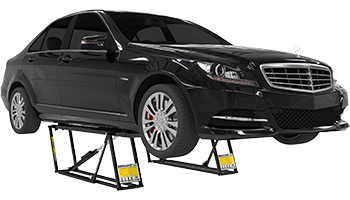

5000TL
Sports cars, sedans & more
Our 5,000-lb. capacity lift is extremely popular, probably our most referenced and most used model when we do demos, videos and training programs. In a way, it's the go-to portable car lift. If you're not sure which model is for you, unless you drive a truck/SUV, there's very little chance your vehicle is too heavy for this lift. The incredible versatility of this model makes it easy to maneuver across parking lots, track spaces and certainly home garages. Sitting only 3 inches off the ground when lowered, it's arguably the most ideal garage lift for low-stances vehicles. Corvette and Porsche owners love QuickJack!
More Details Sales Flyer
| Lifting capacity | 5,000 lbs. |
|---|---|
| Lowered height | 3" |
| Max. height | 24" |
| A - Lift point spread (Max) | 60" |
| B - Lift point spread (Min) | 37" |
| C - Frame length | 70" |
| D - Frame width | 11" |
| Frame weight | 78 lbs. |

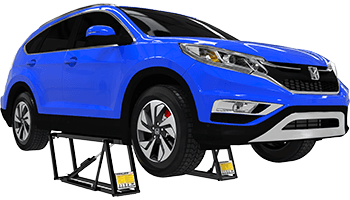

7000TL
Light trucks and SUVs
Our heavy-duty, standard-length portable car lift is popular and versatile as the lighter-capacity 5000TL. If you have a truck or SUV, pair this model with the optional SUV/truck adapter kit to get the most lift possible. The 7000TL's lowered height is only 1/2" taller than the 5000TL, which means the 7000TL can lift virtually everything the lighter model can, plus a full extra ton. The frames are reinforced with box-welded steel—hence the 1/2" of added height—to give it the extra umph it needs for heavy lifting.
More Details Sales Flyer
| Lifting capacity | 7,000 lbs. |
|---|---|
| Lowered height | 3.5" |
| Max. height | 24.5" |
| A - Lift point spread (Max) | 60" |
| B - Lift point spread (Min) | 37" |
| C - Frame length | 70.75" |
| D - Frame width | 12.5" |
| Frame weight | 98 lbs. |
Extended-Length Models
5000TLX
Sedans and sports cars with longer wheelbases
Our extended-length version of the 5000TLX offers an extra 6 inches of reach for vehicles with longer wheelbases. The additional length makes it ideal for some full-size sedans, your daddy's big old Cadillacs and more. Users will lose some ability to work on small-wheelbase vehicles, so this model is only recommended if you're sure that's not going to be an issue.
More Details Sales Flyer
| Lifting capacity | 5,000 lbs. |
|---|---|
| Lowered height | 3" |
| Max. height | 24" |
| A - Lift point spread (Max) | 66" |
| B - Lift point spread (Min) | 43" |
| C - Frame length | 76" |
| D - Frame width | 11" |
| Frame weight | 81.5 lbs. |
7000TLX
Light trucks and SUVs with longer wheelbases
This is our heaviest-duty lift in the extended-length lineup. As the longer version of our truck lift, this QuickJack model is perfect for lifting four-door truck cabs, vans and SUVs. There isn't much on the consumer market that this lift can't handle. If you specialize in heavy machinery and don't need to worry about the little stuff, QuickJack's EXT series will change your life.
More Details Sales Flyer
| Lifting capacity | 7,000 lbs. |
|---|---|
| Lowered height | 3.5" |
| Max. height | 24.5" |
| A - Lift point spread (Max) | 66" |
| B - Lift point spread (Min) | 43" |
| C - Frame length | 76" |
| D - Frame width | 12.5" |
| Frame weight | 103 lbs. |

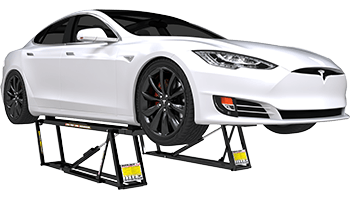

6000ELX
EVs and vehicles with extra-long wheelbases
Bearing the distinction as the most unique lift in our lineup, the ELX is significantly longer than our EXT offerings because it was made to fit EV vehicles with extra-long wheelbases. Until now, only two-post lifts and four-post lifts with the assistance of rolling bridge jacks have been able to accommodate such vehicle types. Not every shop or garage has the space or willingness to give up that much flooring. With a 6,000-lb. capacity, our ELX will breezily handle luxury EV sedans that feature OEM jack points at the extreme edges of the vehicle chassis. Detailers and full-service auto shops will be seeing more and more of these EVs in the future, so they need to be ready!
More Details Sales Flyer
| Lifting capacity | 6,000 lbs. |
|---|---|
| Lowered height | 3.5" |
| Max. height | 24.5" |
| A - Lift point spread (Max) | 76" |
| B - Lift point spread (Min) | 53" |
| C - Frame length | 86.75" |
| D - Frame width | 12.5" |
| Frame weight | 112 lbs. |
